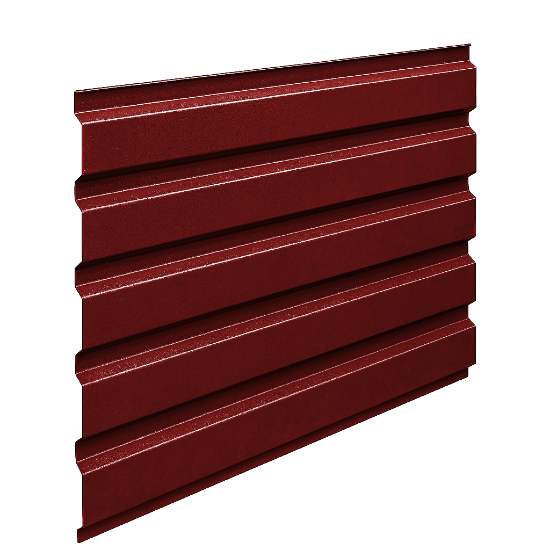

BR5-36 is a sturdy panel with 36” [914 mm] coverage, and uniformly spaced ribs at 7.2” [183 mm] o/c. As a wall panel BR5-36 laps in the low cell. As a roof panel, BR5-36 is inverted so that the side lap occurs in the high cell. All Exposed Fastener wall panels may be installed in a variety of rainscreen applications to form a complete wall system. Systems may vary from an uninsulated screenwall to MetalWrap® Series, an insulated composite backup panel system with Advanced Thermal and Moisture Protection (ATMP®).
Standard:
5′ [1.52m] – 38′ [11.582m]
20’ [6.10m] max for aluminum
36″ [914mm]
1 1/2” [33mm]
Standard: Smooth
Optional: Non-Directional Embossing
24 – 18 gauge G-90 Galvanized Steel
Optional:
Aluminum
Stainless Steel
